Continuous Profiling Using Parca - Blog

In today's blog post, we will examine continuous profiling using Parca. We will set up Parca in a Kubernetes cluster, explore its architecture, and collect profiles from an example application. Finally, we will review the Parca UI to analyze the collected profiles. If you are not familiar with continuous profiling, I recommend reading the "What is profiling?" section in the Parca documentation.

Parca has two main components: the Parca Server and the Parca Agent. The Parca Server stores profiling data and enables querying and analysis over time. The Parca Agent is an eBPF-based whole-system profiler.

The diagram below illustrates the architecture of Parca and the Parca Agent.

Parca can source profiles by retrieving them from targets via HTTP or by using the Parca Agent, which pushes them to the Parca Server. The Parca Server then stores these profiles. Different series of profiles are identified by their unique label combinations and can be visualized through the Parca UI, which is provided by the Parca Server, using icicle-graphs.

Installation

In the following we will deploy an example application to a Kubernetes cluster, which exposes HTTP endpoints serving pprof, the Parca Server and the Parca Agent. Let's start by creating a new namespace called parca and deploying the echoserver as our example application.

kubectl create namespace parca
helm upgrade --install echoserver --namespace parca oci://ghcr.io/ricoberger/charts/echoserver --version 1.0.3 --set-json='podLabels={"app": "echoserver"}'

In the next step we deploy the Parca Server, by applying the 1-1-parca-server.yaml file from the ricoberger/playground repository:

kubectl apply -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/1-1-parca-server.yaml

This will create a Service, StatefulSet, and ConfigMap for the Parca Server. The ConfigMap contains the configuration for the Parca Server. We define the storage location (the local filesystem¹) that Parca will use to store the profiles and add a scrape configuration for our example application.

object_storage:
  bucket:
    config:
      directory: /data
    type: FILESYSTEM
scrape_configs:
  - job_name: echoserver
    scrape_interval: 45s
    scrape_timeout: 60s
    static_configs:
      - targets:
          - echoserver.parca.svc.cluster.local:8080
    profiling_config:
      pprof_config:
        fgprof:
          enabled: true
          path: /debug/pprof/fgprof

Last but not least, we deploy the Parca Agent using the 1-2-parca-agent.yaml file:

kubectl apply -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/1-2-parca-agent.yaml

The Parca Agent is deployed as a DaemonSet and requires a ClusterRole, ClusterRoleBinding, and ServiceAccount to watch all Nodes and Pods within the cluster. The deployed ConfigMap contains the configuration for the Parca Agent, including the relabel configuration, ensuring that the pushed profiles have all the necessary labels for later differentiation.

At this point, our example application, the Parca Server and the Parca Agent, should be up and running:

NAME                              READY   STATUS    RESTARTS   AGE
echoserver-664ccd6944-hjxpb       1/1     Running   0          4m15s
parca-agent-lq8h5                 1/1     Running   0          3m7s
parca-server-0                    1/1     Running   0          3m37s

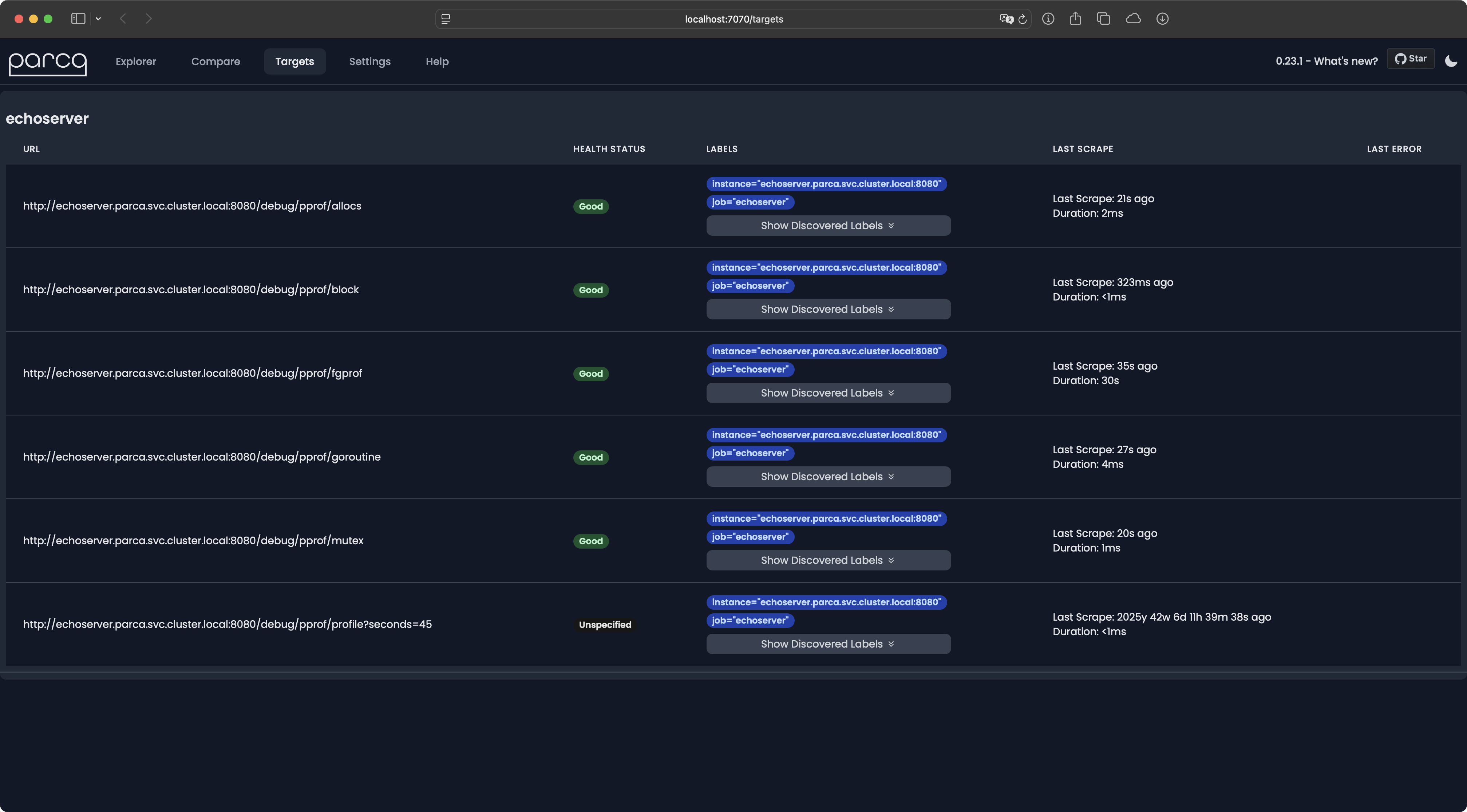

We can also access the Parca UI via kubectl port-forward -n parca svc/parca-server 7070, where we should see our example application in the targets list: http://localhost:7070/targets.

Parca Operator

Before we continue exploring the Parca UI, I want to share a small side project of mine. The Parca Operator allows us to dynamically populate the scrape_configs of the Parca Server using a ParcaScrapeConfig Custom Resource.

The operator uses the Kubernetes Service Discovery feature of Parca to dynamically add, update, and remove scrape configurations, similar to the Prometheus Operator. This allows us to replace our static configuration for the echoserver, which would not function correctly if we run more than one replica of the service.

Let's first update our configuration for the Parca Server by removing the scrape_configs:

kubectl apply -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/2-1-parca-server.yaml

Now we can install the Parca Operator using the corresponding Helm chart and the 3-1-parca-operator.yaml values file. The operator will mount the Parca Server's configuration file and create a new configuration file as a Secret in the parca namespace, named parca-server-generated.

helm upgrade --install parca-operator --namespace parca oci://ghcr.io/ricoberger/charts/parca-operator --version 1.2.0 -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/3-1-parca-operator.yaml

In the next step, we will update our Parca Server setup to use the Secret instead of the ConfigMap for its configuration. We will also add a ClusterRole, ClusterRoleBinding, and ServiceAccount for the Parca Server, enabling it to list and watch all Pods in the cluster.

kubectl apply -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/3-2-parca-server.yaml

NAME                              READY   STATUS    RESTARTS   AGE
echoserver-664ccd6944-hjxpb       1/1     Running   0          8m2s
parca-agent-lq8h5                 1/1     Running   0          6m54s
parca-operator-6789868cdd-7txdf   1/1     Running   0          103s
parca-server-0                    1/1     Running   0          49s

Last but not least, we will create a ParcaScrapeConfig for our example application:

kubectl apply -f https://raw.githubusercontent.com/ricoberger/playground/d278b2c9dd149d2aea7bfda036a764ae51e0e6a1/kubernetes/parca/3-3-echoserver-parcascrapeconfig.yaml

In the ParcaScrapeConfig we select all Pods, which are having the app label set to echoserver. We also set the port which is used to serve the pprof endpoints.

In the ParcaScrapeConfig, we select all Pods with the app label set to echoserver. We also specify the port (http) used to serve the pprof endpoints. The remaining configuration is similar to the static configuration we used previously.

apiVersion: parca.ricoberger.de/v1alpha1
kind: ParcaScrapeConfig
metadata:
  name: echoserver
  namespace: parca
spec:
  selector:
    matchLabels:
      app: echoserver
  scrapeConfig:
    port: http
    interval: 45s
    timeout: 60s
    profilingConfig:
      pprofConfig:
        fgprof:
          enabled: true
          path: /debug/pprof/fgprof

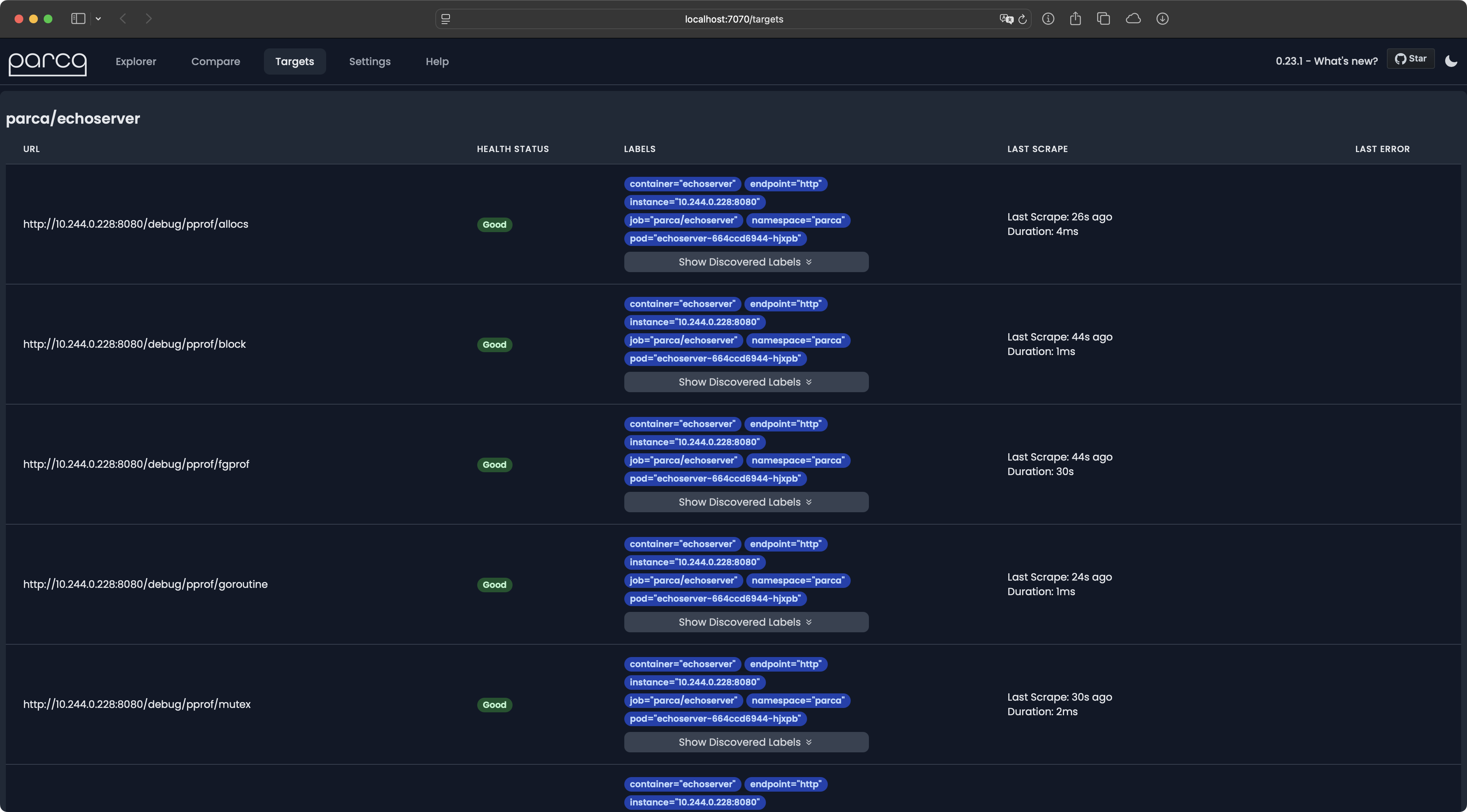

If we access the targets list in the Parca UI now, we should see a new job for the echoserver with a different set of labels than before.

Explore Profiles

In the last section of this blog post, we will explore the profiles ingested into Parca. Let's open the Parca UI by creating a port-forward to the Parca Server using the command kubectl port-forward -n parca svc/parca-server 7070 and then opening http://localhost:7070/ in our browser.

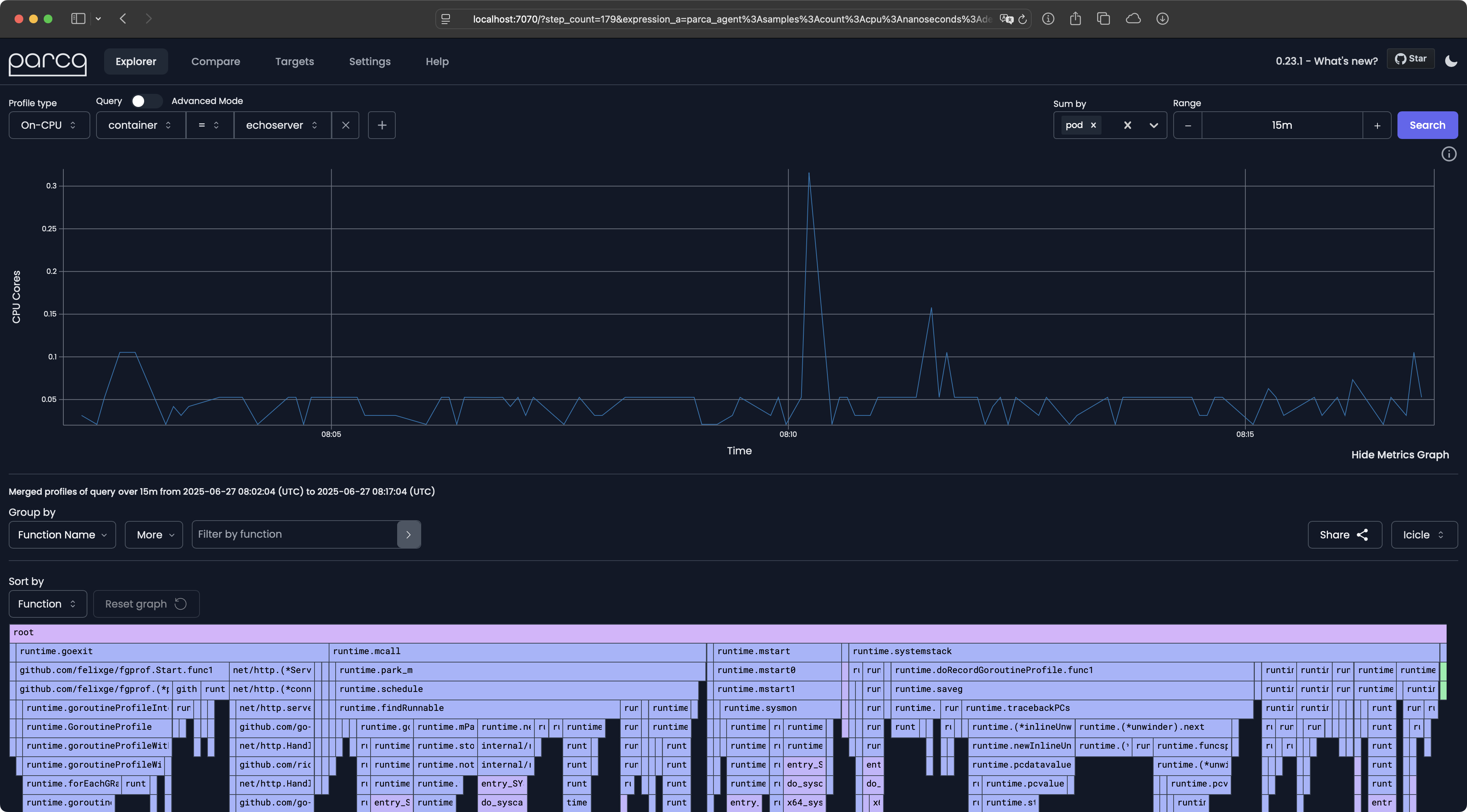

In the first step we explore the profiles captured by the Parca Agent. To do this, we select On-CPU from the Profile Type dropdown menu. For now, we are only interested in the profiles of the echoserver. To filter the profiles, we select the container label and the echoserver value. Lastly, we select the pod label from the Sum By dropdown menu. After that, we should see the profiles captured by the Parca Agent for the echoserver.

To simulate a CPU intensive task, we create a port-forward to the echoserver using the command kubectl port-forward -n parca svc/echoserver 8080. Afterwards we run the following cURL command:

curl -vvv "http://localhost:8080/fibonacci?n=100000000"

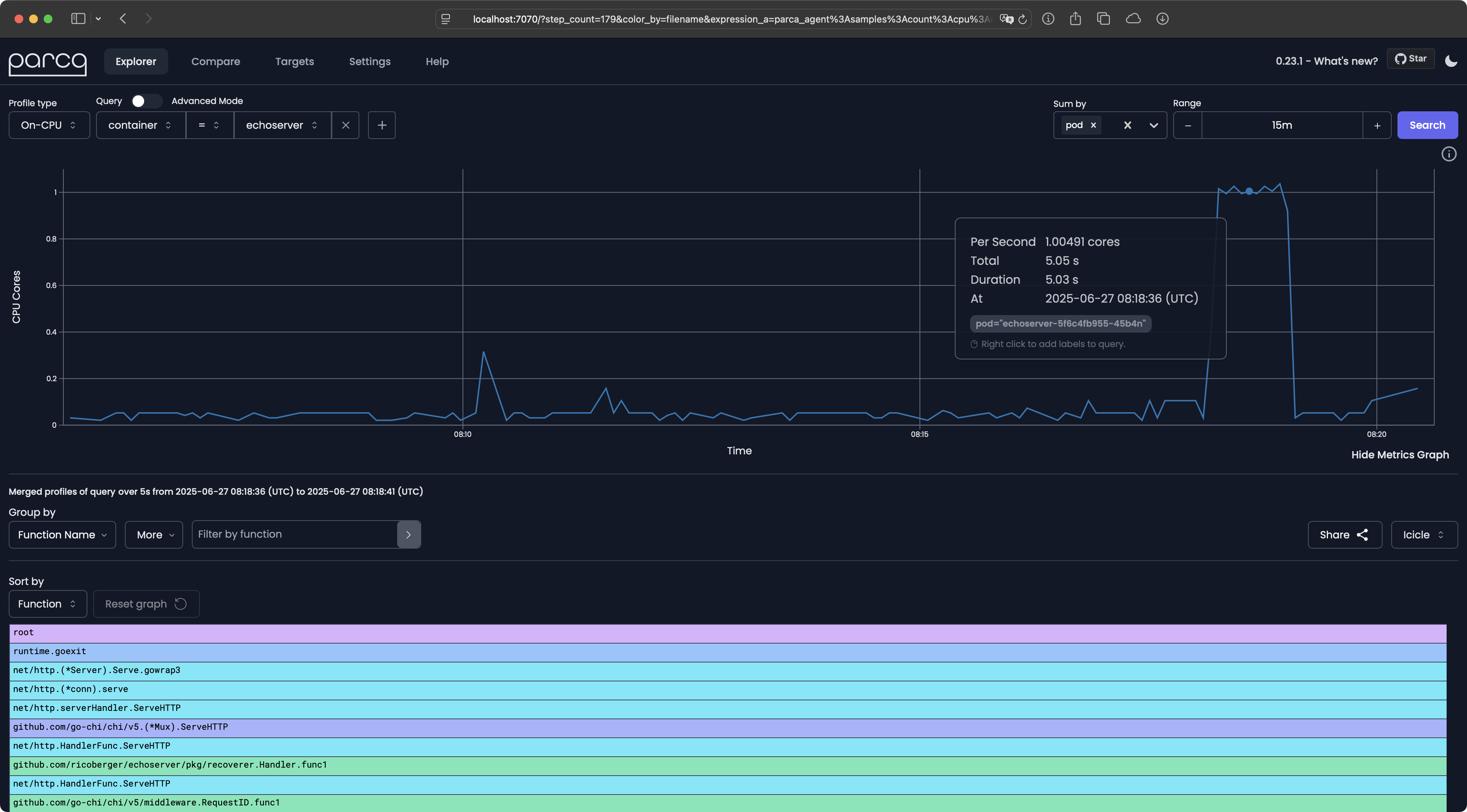

Once the request is complete, we can refresh the profiles displayed in the Parca UI by clicking the Search button. We should now observe a spike in the CPU usage of the echoserver. By hovering over one of the data points, we can see how many cores the echoserver used per second and the total CPU usage time. Clicking on the data point will display the captured sample below the graph, allowing us to check where the most time was spent. As expected, most of the time should be attributed to the main.fibonacciHandler function.

When using the Parca Agent, only the On-CPU profiles are available. However, since we added a scrape configuration for the echoserver, the other profiles should also be available. These include:

Fgprof Samples Total: CPU profile samples observed regardless of their current On/Off CPU scheduling status
Fgprof Samples Time Total: CPU profile measured regardless of their current On/Off CPU scheduling status in nanoseconds
Goroutine Created Total: Stack traces that created all current goroutines.
Memory Allocated Objects Total: A sampling of all past memory allocations by objects.
Memory Allocated Bytes Total: A sampling of all past memory allocations in bytes.
Memory In-Use Objects: A sampling of memory allocations of live objects by objects.
Memory In-Use Bytes: A sampling of memory allocations of live objects by bytes.
Process CPU Nanoseconds: CPU profile measured by the process itself in nanoseconds.
Process CPU Samples: CPU profile samples observed by the process itself.

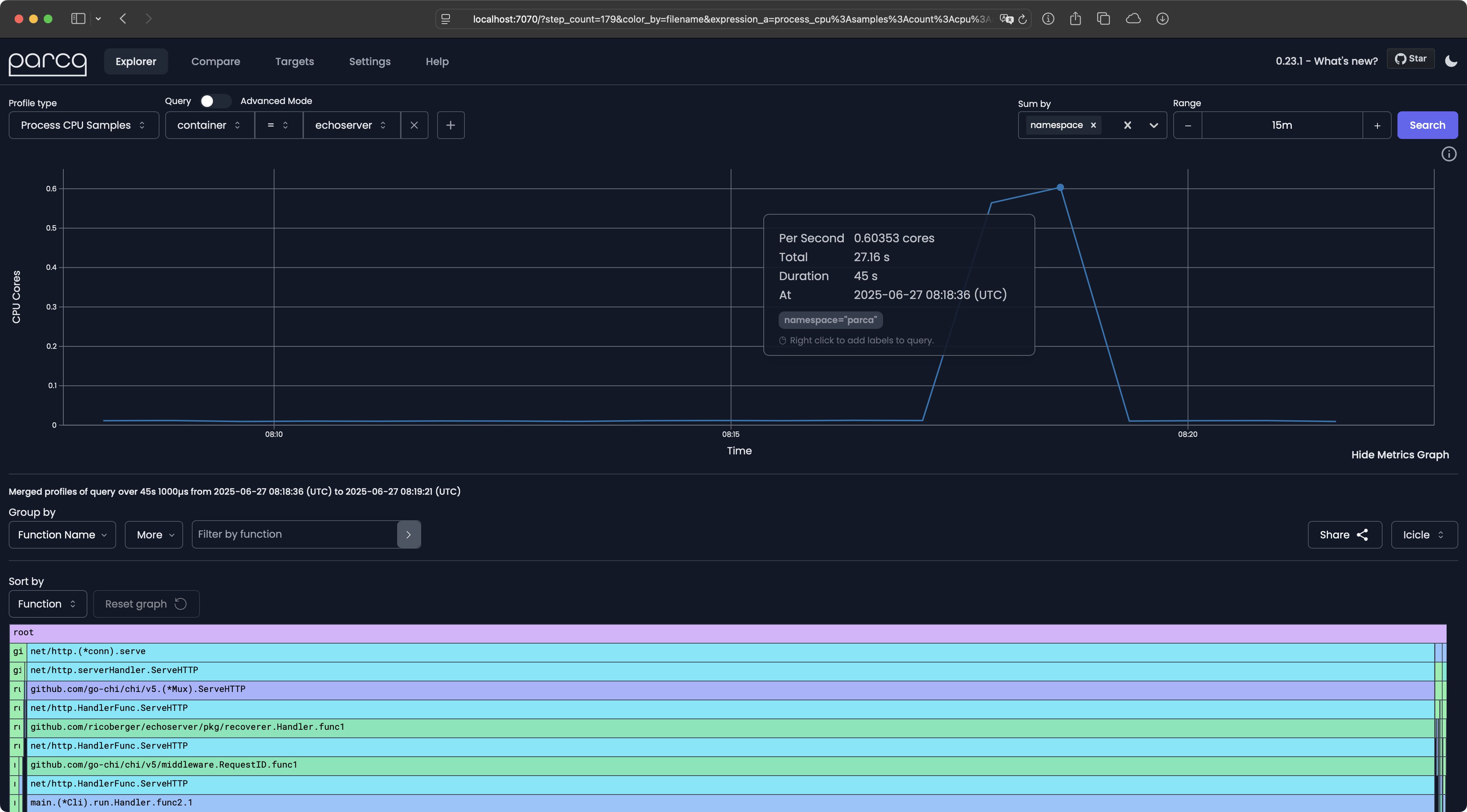

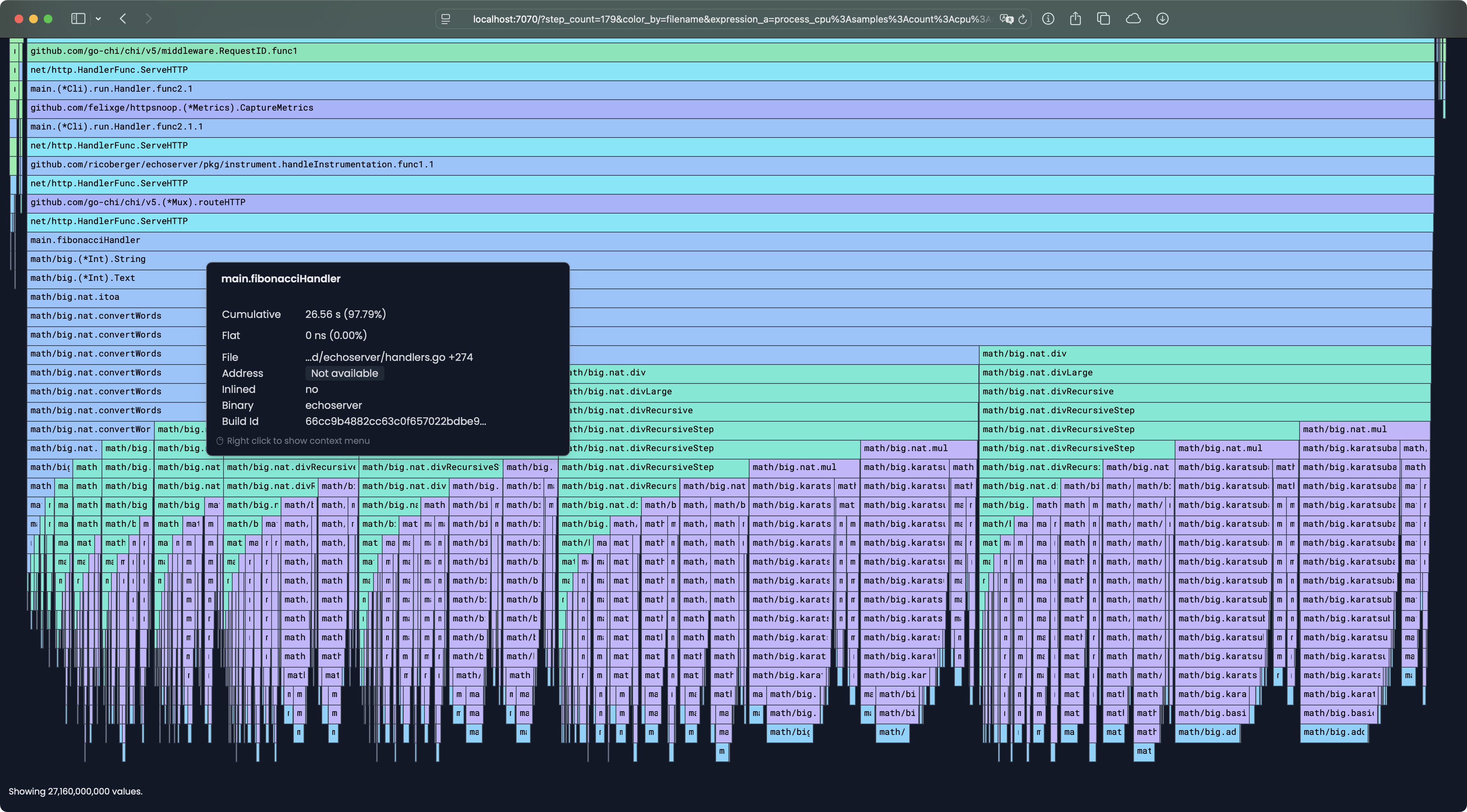

If we are selecting the Process CPU Samples from the Profile Types dropdown, we should see a similar pattern as for the On-CPU profiles.

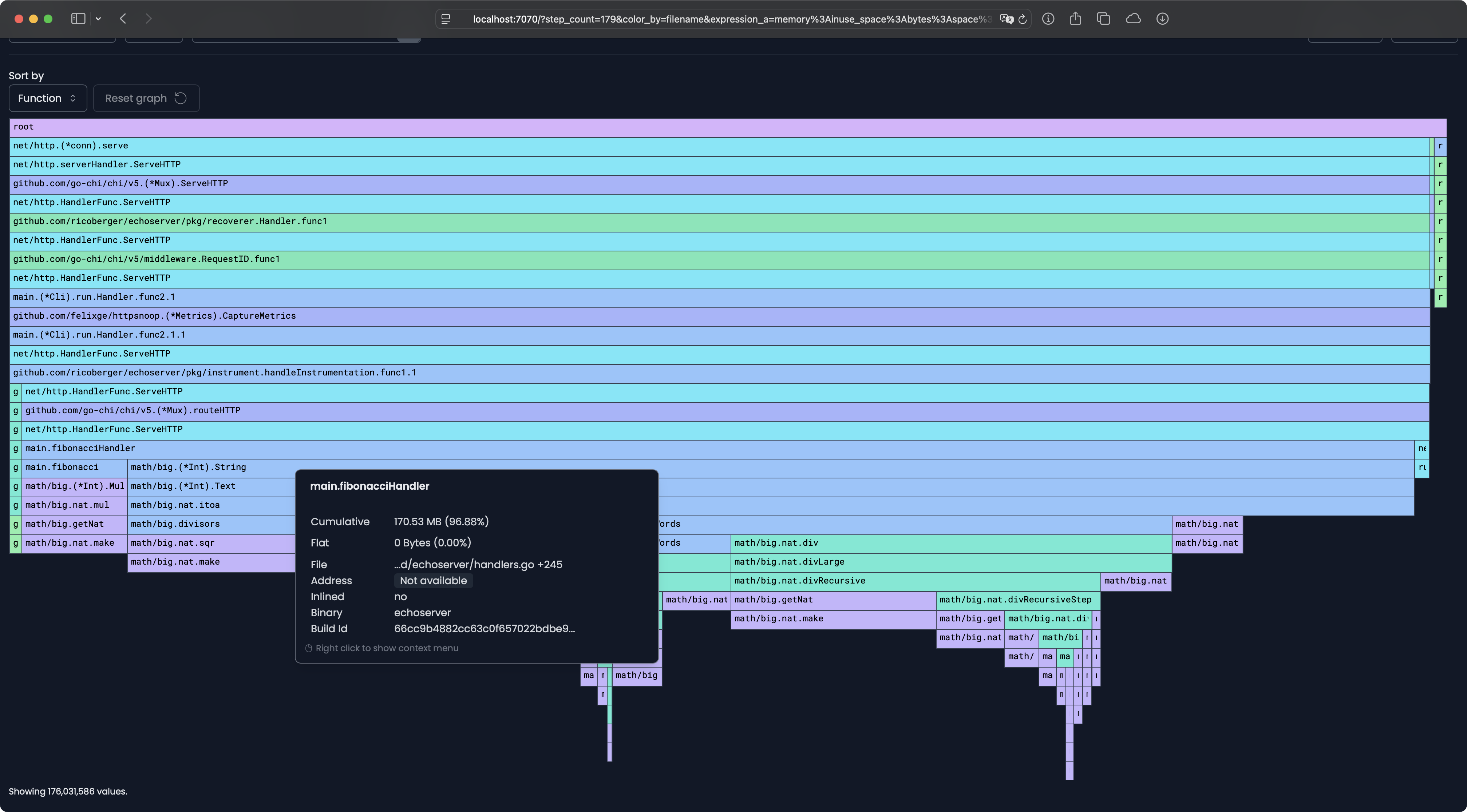

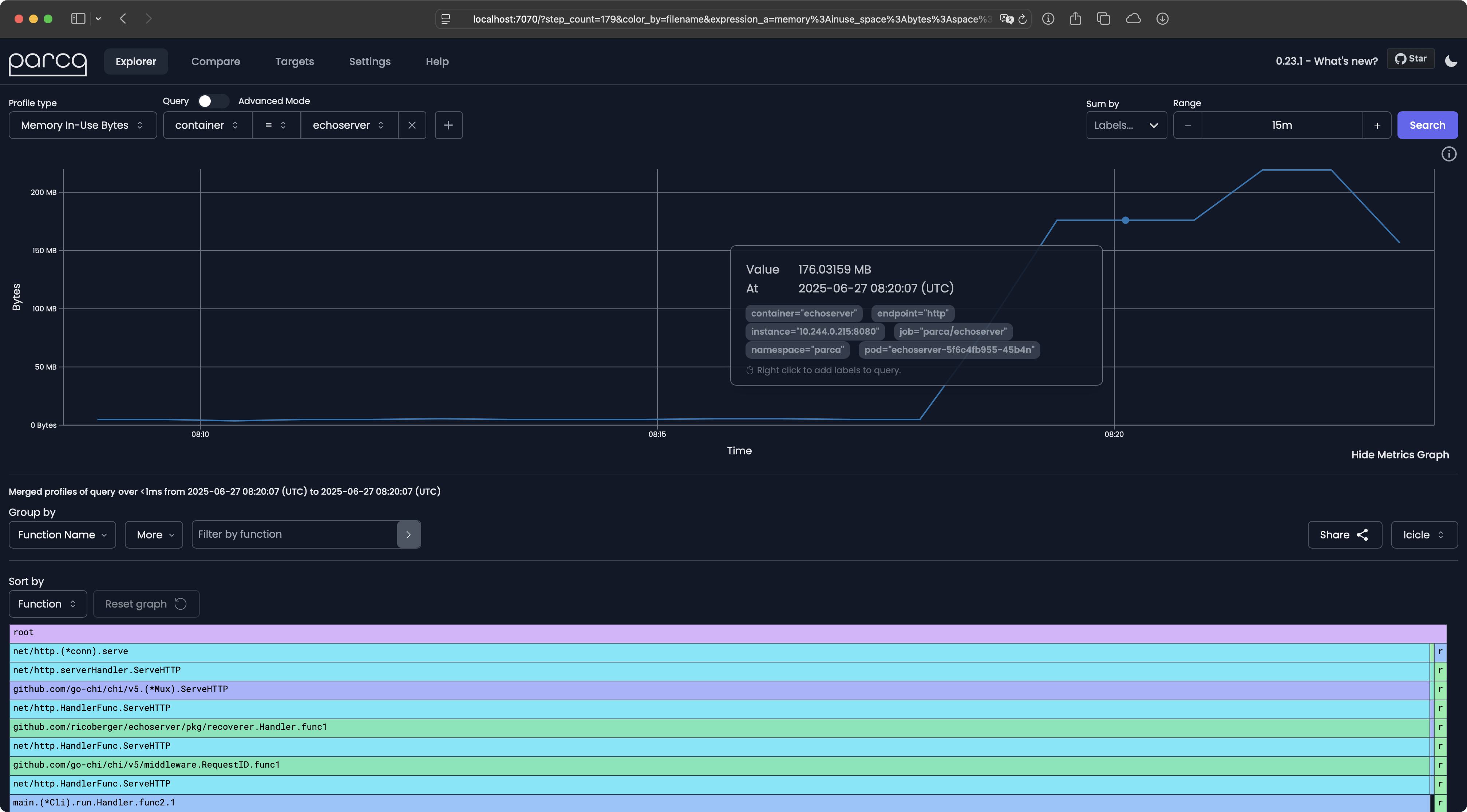

Lastly, we will select the Memory In-Use Bytes item from the Profile Types dropdown. When we hover over a data point in the graph, we can see the number of bytes used by the echoserver during this time. If we click on the data point, we can view the sample below the graph to analyze where most of our memory was spent.

Parca supports the same storage configuration options as Thanos. This means it can also be used together with an S3 compatible object storage or an Azure Storage Account. This would also be the recommended storage option for a production deployment, because Parca doesn't handle the retention for stored data and it is recommended to configure this via a lifecycle rule in the object storage. ↩︎
