Deploy YugabyteDB on a Multi-Zone AKS Cluster - Blog

After getting started with YugabyteDB in the last blog post, I wanted to explore how to set up a zone-aware YugabyteDB cluster. To do this, we will create a multi-zone AKS cluster and use the standard single-zone YugabyteDB Helm Chart to deploy one-third of the nodes in the database cluster across each of the three zones.

With the commerce schema from the last post, the final architecture will appear as shown in the following graphic. We will have three StatefulSets for the YB-Master and three StatefulSets for the YB-TServer. Each StatefulSet will contain one Pod running in the specified AKS zone. The tablets for each table in the commerce schema will be distributed across all Pods in the cluster. All the configuration files we are using can be found in the ricoberger/playground GitHub repository.

Create a AKS Cluster

Create a AKS cluster, if you have not already done so, by running the following command. Note that if you do not specify 3 zones in the zones parameter explicitly then AKS may place the 3 nodes in only 2 zones.

az group create --name yugabyte --location germanywestcentral
az aks create --resource-group yugabyte --name yugabyte --node-count 3 --zones 1 2 3

We create a StorageClass. We need to specify WaitForFirstConsumer mode for the volumeBindingMode so that volumes will be provisioned according to pods zone affinities.

kubectl apply --server-side -f storageclass.yaml

Create a YugabyteDB Cluster

Add the Helm chart repository and make sure that we have the latest updates to the repository by running the following commands.

helm repo add yugabytedb https://charts.yugabyte.com
helm repo update

Before we can install the Helm charts, we have to create the 3 namespaces first.

kubectl create namespace yb-germanywestcentral-1
kubectl create namespace yb-germanywestcentral-2
kubectl create namespace yb-germanywestcentral-3

Now we create the overall YugabyteDB cluster in such a way that one third of the nodes are hosted in each zone.

helm upgrade --install yb-germanywestcentral-1 yugabytedb/yugabyte --version 2.25.1 --namespace yb-germanywestcentral-1 --wait -f values-yb-germanywestcentral-1.yaml
helm upgrade --install yb-germanywestcentral-2 yugabytedb/yugabyte --version 2.25.1 --namespace yb-germanywestcentral-2 --wait -f values-yb-germanywestcentral-2.yaml
helm upgrade --install yb-germanywestcentral-3 yugabytedb/yugabyte --version 2.25.1 --namespace yb-germanywestcentral-3 --wait -f values-yb-germanywestcentral-3.yaml

Check the Cluster Status

We can check the status of the cluster using various commands noted below.

Check the pods

kubectl get pods -A | grep yb-germanywestcentral

yb-germanywestcentral-1                     yb-master-0                                                      3/3     Running            0                7m18s
yb-germanywestcentral-1                     yb-tserver-0                                                     3/3     Running            0                7m18s
yb-germanywestcentral-2                     yb-master-0                                                      3/3     Running            0                5m55s
yb-germanywestcentral-2                     yb-tserver-0                                                     3/3     Running            0                5m55s
yb-germanywestcentral-3                     yb-master-0                                                      3/3     Running            0                4m53s
yb-germanywestcentral-3                     yb-tserver-0                                                     3/3     Running            0                4m53s

Check the services.

kubectl get service -A | grep yb-germanywestcentral

yb-germanywestcentral-1                     yb-masters                                      ClusterIP      None           <none>         7000/TCP,7100/TCP,15433/TCP                                                            8m6s
yb-germanywestcentral-1                     yb-tservers                                     ClusterIP      None           <none>         9000/TCP,12000/TCP,11000/TCP,13000/TCP,9100/TCP,6379/TCP,9042/TCP,5433/TCP,15433/TCP   8m6s
yb-germanywestcentral-2                     yb-masters                                      ClusterIP      None           <none>         7000/TCP,7100/TCP,15433/TCP                                                            6m42s
yb-germanywestcentral-2                     yb-tservers                                     ClusterIP      None           <none>         9000/TCP,12000/TCP,11000/TCP,13000/TCP,9100/TCP,6379/TCP,9042/TCP,5433/TCP,15433/TCP   6m42s
yb-germanywestcentral-3                     yb-masters                                      ClusterIP      None           <none>         7000/TCP,7100/TCP,15433/TCP                                                            5m40s
yb-germanywestcentral-3                     yb-tservers                                     ClusterIP      None           <none>         9000/TCP,12000/TCP,11000/TCP,13000/TCP,9100/TCP,6379/TCP,9042/TCP,5433/TCP,15433/TCP   5m40s

We can also access the YB-Master Admin UI for the cluster at http://localhost:7000. Note that we can use any of the above three services for this purpose as all of them will show the same cluster metadata.

kubectl port-forward --namespace yb-germanywestcentral-1 svc/yb-masters 7000

Configure Zone-Aware Replica Placement

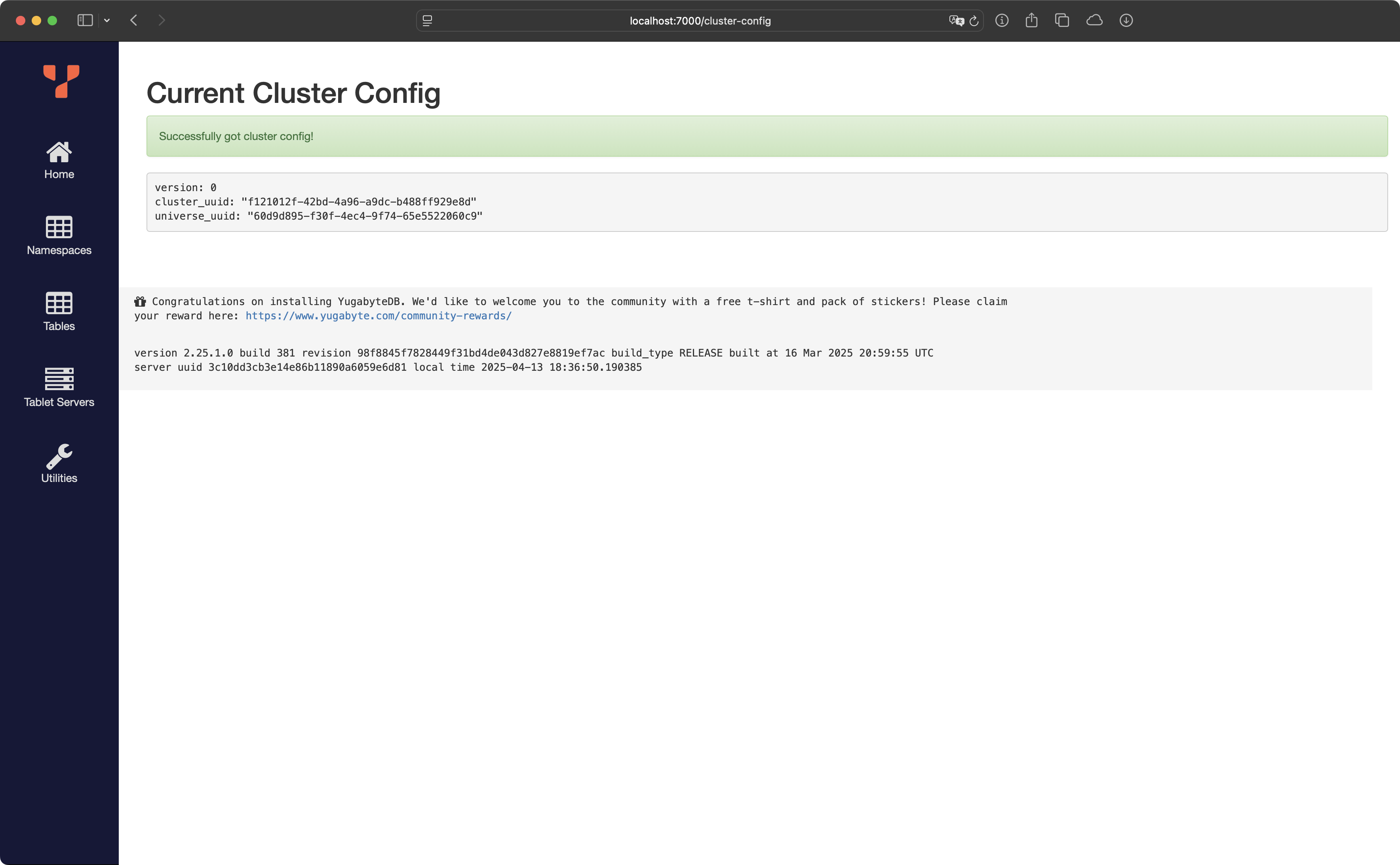

The default replica placement policy treats every yb-tserver as equal irrespective of its placement_* setting. We go to http://localhost:7000/cluster-config to confirm that the default configuration is still in effect.

To make the replica placement zone-aware, so that one replica is placed in each zone, we run the following command:

kubectl exec -it --namespace yb-germanywestcentral-1 yb-master-0 -- bash -c "/home/yugabyte/master/bin/yb-admin --master_addresses yb-master-0.yb-masters.yb-germanywestcentral-1.svc.cluster.local:7100,yb-master-0.yb-masters.yb-germanywestcentral-2.svc.cluster.local:7100,yb-master-0.yb-masters.yb-germanywestcentral-3.svc.cluster.local:7100 modify_placement_info azure.germanywestcentral.germanywestcentral-1,azure.germanywestcentral.germanywestcentral-2,azure.germanywestcentral.germanywestcentral-3 3"

To see the new configuration, we go to http://localhost:7000/cluster-config.

Single Namespace

The following section was added after the blog post was first published on April 14, 2025.

After publishing the first version of the blog post, I wondered if it was possible to create a zone-aware YugabyteDB cluster within a single namespace, allowing PodDisruptionBudgets to apply to the entire cluster. It turns out this is achievable by setting the oldNamingStyle value to false in the Helm chart. You can find the updated values files in the ricoberger/playground repository.

kubectl create namespace yugabytedb

helm upgrade --install yb-germanywestcentral-1 yugabytedb/yugabyte --version 2.25.1 --namespace yugabytedb --wait -f values-single-namespace-yb-germanywestcentral-1.yaml
helm upgrade --install yb-germanywestcentral-2 yugabytedb/yugabyte --version 2.25.1 --namespace yugabytedb --wait -f values-single-namespace-yb-germanywestcentral-2.yaml
helm upgrade --install yb-germanywestcentral-3 yugabytedb/yugabyte --version 2.25.1 --namespace yugabytedb --wait -f values-single-namespace-yb-germanywestcentral-3.yaml

kubectl exec -it --namespace yugabytedb yb-germanywestcentral-1-yb-master-0 -- bash -c "/home/yugabyte/master/bin/yb-admin --master_addresses yb-germanywestcentral-1-yb-master-0.yb-germanywestcentral-1-yb-masters.yugabytedb.svc.cluster.local:7100,yb-germanywestcentral-2-yb-master-0.yb-germanywestcentral-2-yb-masters.yugabytedb.svc.cluster.local:7100,yb-germanywestcentral-3-yb-master-0.yb-germanywestcentral-3-yb-masters.yugabytedb.svc.cluster.local:7100 modify_placement_info azure.germanywestcentral.germanywestcentral-1,azure.germanywestcentral.germanywestcentral-2,azure.germanywestcentral.germanywestcentral-3 3"
