Hi and welcome to another blog post. Today, we will explore Vitess. We will set up a simple Vitess cluster on Kubernetes. Once the cluster is running, we will discuss how to move tables and reshard the cluster. Finally, we will look at how to monitor a Vitess cluster using Prometheus. Please note that I am not an expert in Vitess; I simply want to experiment with it in this blog post.

Before we begin setting up Vitess, we need a running Kubernetes cluster. If you want to try this on your local machine, you can use a tool like kind to create a local cluster. Additionally, we need to install the MySQL Client and vtctldclient locally:

go install vitess.io/vitess/go/cmd/vtctldclient@v0.21.3
brew install mysql@8.4
brew link mysql@8.4

If you are not familiar with the architecture and concepts of Vitess, I recommend reviewing the documentation before proceeding. All the configuration files we are using can be found in the ricoberger/playground GitHub repository.

Installation

We will create our Vitess cluster using the Vitess Operator. To install the operator, we will create a new namespace called vitess, install the CRDs, and set up the operator using the following commands. Afterward, we can verify that the operator is running by executing kubectl get pods.

kubectl apply --server-side -f 001_namespace.yaml
kubectl apply --server-side -f 002_crds.yaml
kubectl apply --server-side -f 003_operator.yaml

NAME                               READY   STATUS    RESTARTS   AGE
vitess-operator-7cc877ccc5-vdndl   1/1     Running   0          21s

Once the operator is running, we can launch our first Vitess cluster. The cluster will use one cell (zone1) that includes all the control plane components (VTAdmin, vtctld, Topology Store) and one keyspace named commerce, which will contain one primary tablet and one replica tablet.

To bring up the cluster we can apply the 101_initial_cluster.yaml manifest. Afterwards we can check the state of the cluster using kubectl get pods. After a few minutes, it should show that all pods are in the status of running.

kubectl apply --server-side -f 101_initial_cluster.yaml

NAME                                                         READY   STATUS    RESTARTS      AGE
example-commerce-x-x-zone1-vtorc-c13ef6ff-86bd96dfb4-kp8w5   1/1     Running   2 (59s ago)   71s
example-etcd-faf13de3-1                                      1/1     Running   0             72s
example-etcd-faf13de3-2                                      1/1     Running   0             72s
example-etcd-faf13de3-3                                      1/1     Running   0             72s
example-vttablet-zone1-2469782763-bfadd780                   3/3     Running   2 (46s ago)   71s
example-vttablet-zone1-2548885007-46a852d0                   3/3     Running   1 (46s ago)   71s
example-zone1-vtadmin-c03d7eae-68d845dbfd-wnlk9              2/2     Running   0             72s
example-zone1-vtctld-1d4dcad0-75f6fb7c6b-78rpv               1/1     Running   1 (51s ago)   72s
example-zone1-vtgate-bc6cde92-57fdc84bb6-cdj75               1/1     Running   2 (45s ago)   72s
vitess-operator-7cc877ccc5-vdndl                             1/1     Running   0             2m29s

For ease-of-use, Vitess provides a script to port-forward from Kubernetes to our local machine. This script also recommends setting up aliases for mysql and vtctldclient. Once the port-forward starts running, the VTAdmin UI will be available at http://localhost:14000/.

alias vtctldclient="vtctldclient --server=localhost:15999"
alias mysql="mysql -h 127.0.0.1 -P 15306 -u user"
./pf.sh &

In the last step of the initial installation we will create our initial scheme, which will deploy a single unsharded keyspace named commerce, with the following tables:

The product table contains the product information for all of the products.
The customer table has a customer_id that has an auto_increment. A typical customer table would have a lot more columns, and sometimes additional detail tables.
The corder table (named so because order is an SQL reserved word) has an order_id auto-increment column. It also has foreign keys into customer(customer_id) and product(sku).

vtctldclient ApplySchema --sql-file="102_create_commerce_schema.sql" commerce
vtctldclient ApplyVSchema --vschema-file="103_vschema_commerce_initial.json" commerce

We should now be able to connect to the VTGate Server in our cluster by running the mysql command.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| commerce           |
| information_schema |
| mysql              |
| sys                |
| performance_schema |
+--------------------+
5 rows in set (0.02 sec)

Move Tables

In the next step we will create a new keyspace named customer and move the customer and corder tables to the newly created keyspace. This is the recommended approach before splitting a single table across multiple servers (sharding).

Let's start by loading some data into our created tables and looking at the data we inserted. Notice that all of our tables are currently in the commerce schema/keyspace here.

mysql < 201_insert_commerce_data.sql
mysql --table < 202_select_commerce_data.sql

Using commerce
Customer
+-------------+--------------------+
| customer_id | email              |
+-------------+--------------------+
|           1 | alice@domain.com   |
|           2 | bob@domain.com     |
|           3 | charlie@domain.com |
|           4 | dan@domain.com     |
|           5 | eve@domain.com     |
+-------------+--------------------+
Product
+----------+-------------+-------+
| sku      | description | price |
+----------+-------------+-------+
| SKU-1001 | Monitor     |   100 |
| SKU-1002 | Keyboard    |    30 |
+----------+-------------+-------+
COrder
+----------+-------------+----------+-------+
| order_id | customer_id | sku      | price |
+----------+-------------+----------+-------+
|        1 |           1 | SKU-1001 |   100 |
|        2 |           2 | SKU-1002 |    30 |
|        3 |           3 | SKU-1002 |    30 |
|        4 |           4 | SKU-1002 |    30 |
|        5 |           5 | SKU-1002 |    30 |
+----------+-------------+----------+-------+

When we list our tablets using the following command, we can see that we have two tablets running: one primary and one replica.

mysql -e "show vitess_tablets"

+-------+----------+-------+------------+---------+------------------+--------------+----------------------+
| Cell  | Keyspace | Shard | TabletType | State   | Alias            | Hostname     | PrimaryTermStartTime |
+-------+----------+-------+------------+---------+------------------+--------------+----------------------+
| zone1 | commerce | -     | PRIMARY    | SERVING | zone1-2469782763 | 10.244.5.244 | 2025-04-10T06:08:22Z |
| zone1 | commerce | -     | REPLICA    | SERVING | zone1-2548885007 | 10.244.14.73 |                      |
+-------+----------+-------+------------+---------+------------------+--------------+----------------------+

Now it is time to deploy new tablets for our customer keyspace by applying the 203_customer_tablets.yaml manifest. After some minutes we should see the newly created tablets in a running state. We should also see that a new vtorc instance was created for the customer keyspace.

kubectl apply --server-side -f 203_customer_tablets.yaml

NAME                                                         READY   STATUS    RESTARTS        AGE
example-commerce-x-x-zone1-vtorc-c13ef6ff-86bd96dfb4-kp8w5   1/1     Running   2 (5m52s ago)   6m4s
example-customer-x-x-zone1-vtorc-53d270f6-7754f557c-bb87n    1/1     Running   0               72s
example-etcd-faf13de3-1                                      1/1     Running   0               6m5s
example-etcd-faf13de3-2                                      1/1     Running   0               6m5s
example-etcd-faf13de3-3                                      1/1     Running   0               6m5s
example-vttablet-zone1-1250593518-17c58396                   3/3     Running   0               72s
example-vttablet-zone1-2469782763-bfadd780                   3/3     Running   2 (5m39s ago)   6m4s
example-vttablet-zone1-2548885007-46a852d0                   3/3     Running   1 (5m39s ago)   6m4s
example-vttablet-zone1-3778123133-6f4ed5fc                   3/3     Running   2 (35s ago)     72s
example-zone1-vtadmin-c03d7eae-68d845dbfd-wnlk9              2/2     Running   0               6m5s
example-zone1-vtctld-1d4dcad0-75f6fb7c6b-78rpv               1/1     Running   1 (5m44s ago)   6m5s
example-zone1-vtgate-bc6cde92-57fdc84bb6-cdj75               1/1     Running   2 (5m38s ago)   6m5s
vitess-operator-7cc877ccc5-vdndl                             1/1     Running   0               7m22s

Before we continue we restart the port-forward after launching the pods has completed. Afterwards we can list our tables again. We can see that we have four tablets now. The two existing ones for the commerce keyspace and two new ones for the customer keyspace.

killall kubectl
./pf.sh &

mysql -e "show vitess_tablets"

+-------+----------+-------+------------+---------+------------------+--------------+----------------------+
| Cell  | Keyspace | Shard | TabletType | State   | Alias            | Hostname     | PrimaryTermStartTime |
+-------+----------+-------+------------+---------+------------------+--------------+----------------------+
| zone1 | commerce | -     | PRIMARY    | SERVING | zone1-2469782763 | 10.244.5.244 | 2025-04-10T06:08:22Z |
| zone1 | commerce | -     | REPLICA    | SERVING | zone1-2548885007 | 10.244.14.73 |                      |
| zone1 | customer | -     | PRIMARY    | SERVING | zone1-1250593518 | 10.244.11.55 | 2025-04-10T06:13:10Z |
| zone1 | customer | -     | REPLICA    | SERVING | zone1-3778123133 | 10.244.8.170 |                      |
+-------+----------+-------+------------+---------+------------------+--------------+----------------------+

In the next step we will create a MoveTables workflow, which copies the tables from the commerce keyspace into the customer keyspace. This operation does not block any database activity.

vtctldclient MoveTables --target-keyspace customer --workflow commerce2customer create --source-keyspace commerce --tables 'customer,corder'

To see what happens under the covers, let's look at the routing rules that the MoveTables operation created. These are instructions used by a VTGate to determine which backend keyspace to send requests to for a given table.

vtctldclient GetRoutingRules

We can monitor the progress of the MoveTables operation using the status action. We can also validate its correctness by performing a logical diff between the source and target to confirm that they are fully synced with the VDiff command.

# Monitoring Progress
vtctldclient MoveTables --target-keyspace customer --workflow commerce2customer status --format=json

{
  "table_copy_state": {},
  "shard_streams": {
    "customer/-": {
      "streams": [
        {
          "id": 1,
          "tablet": {
            "cell": "zone1",
            "uid": 1250593518
          },
          "source_shard": "commerce/-",
          "position": "2a5c9b12-15d2-11f0-a7a3-a2742b031576:1-40",
          "status": "Running",
          "info": "VStream Lag: 0s"
        }
      ]
    }
  },
  "traffic_state": "Reads Not Switched. Writes Not Switched"
}

# Validate Correctness
vtctldclient VDiff --target-keyspace customer --workflow commerce2customer create
vtctldclient VDiff --format=json --target-keyspace customer --workflow commerce2customer show last --verbose

VDiff 1163c387-4284-4214-9896-74b3af6a0cef scheduled on target shards, use show to view progress
{
  "Workflow": "commerce2customer",
  "Keyspace": "customer",
  "State": "started",
  "UUID": "1163c387-4284-4214-9896-74b3af6a0cef",
  "RowsCompared": 0,
  "HasMismatch": false,
  "Shards": "-",
  "StartedAt": "2025-04-10 06:19:56",
  "TableSummary": {
    "corder": {
      "TableName": "corder",
      "State": "started",
      "RowsCompared": 0,
      "MatchingRows": 0,
      "MismatchedRows": 0,
      "ExtraRowsSource": 0,
      "ExtraRowsTarget": 0
    },
    "customer": {
      "TableName": "customer",
      "State": "pending",
      "RowsCompared": 0,
      "MatchingRows": 0,
      "MismatchedRows": 0,
      "ExtraRowsSource": 0,
      "ExtraRowsTarget": 0
    }
  },
  "Reports": {
    "corder": {
      "-": {
        "TableName": "",
        "ProcessedRows": 0,
        "MatchingRows": 0,
        "MismatchedRows": 0,
        "ExtraRowsSource": 0,
        "ExtraRowsTarget": 0
      }
    },
    "customer": {
      "-": {
        "TableName": "",
        "ProcessedRows": 0,
        "MatchingRows": 0,
        "MismatchedRows": 0,
        "ExtraRowsSource": 0,
        "ExtraRowsTarget": 0
      }
    }
  },
  "Progress": {
    "Percentage": 0
  }
}

Once the MoveTables operation is complete, the first step in making the changes live is to switch all query serving traffic from the old commerce keyspace to the customer keyspace for the tables we moved. Queries against the other tables will continue to route to the commerce keyspace.

vtctldclient MoveTables --target-keyspace customer --workflow commerce2customer SwitchTraffic

If we now look at the routing rules after the SwitchTraffic step, we will see that all queries against the customer and corder tables will get routed to the customer keyspace.

vtctldclient GetRoutingRules

The final step is to complete the migration using the Complete action. This will (by default) get rid of the routing rules that were created and DROP the original tables in the source keyspace (commerce). Along with freeing up space on the original tablets, this is an important step to eliminate potential future confusion.

vtctldclient MoveTables --target-keyspace customer --workflow commerce2customer complete

Resharding

In this step, we will divide our customer keyspace into two shards. The final architecture will appear as shown in the graphic below.

Before we can start we have to create a sequence table for our auto-increment columns and we have to decide for sharding keys or Primary Vindexes within a VSchema. More information regarding these two topic can be found in the Vitess documentation¹. To create the sequence tables and VSchema we can run the following commands:

vtctldclient ApplySchema --sql="$(cat 301_create_commerce_seq.sql)" commerce
vtctldclient ApplyVSchema --vschema="$(cat 302_vschema_commerce_seq.json)" commerce
vtctldclient ApplyVSchema --vschema="$(cat 303_vschema_customer_sharded.json)" customer
vtctldclient ApplySchema --sql="$(cat 304_create_customer_sharded.sql)" customer

At this point, you have finalized our sharded VSchema and vetted all the queries to make sure they still work. Now, it’s time to reshard. To do this we will create the target shards by applying the 305_new_shards.yaml manifest. Afterwards some minutes we should see four new tablets and two new vtorc pods (via kubectl get pods) for the created target shards.

kubectl apply --server-side -f 305_new_shards.yaml

# Restart the port-forward afterwards:
killall kubectl
./pf.sh &

NAME                                                          READY   STATUS    RESTARTS      AGE
example-commerce-x-x-zone1-vtorc-c13ef6ff-86bd96dfb4-kp8w5    1/1     Running   2 (19m ago)   19m
example-customer-80-x-zone1-vtorc-836adff9-b67657589-ndpxq    1/1     Running   0             76s
example-customer-x-80-zone1-vtorc-2bf8b95e-86b8b56fbc-q69h4   1/1     Running   0             76s
example-customer-x-x-zone1-vtorc-53d270f6-7754f557c-bb87n     1/1     Running   0             14m
example-etcd-faf13de3-1                                       1/1     Running   0             19m
example-etcd-faf13de3-2                                       1/1     Running   0             19m
example-etcd-faf13de3-3                                       1/1     Running   0             19m
example-vttablet-zone1-0118374573-10d08e80                    3/3     Running   2 (35s ago)   76s
example-vttablet-zone1-0120139806-fed29577                    3/3     Running   0             76s
example-vttablet-zone1-1250593518-17c58396                    3/3     Running   0             14m
example-vttablet-zone1-2289928654-7de47379                    3/3     Running   0             76s
example-vttablet-zone1-2469782763-bfadd780                    3/3     Running   2 (19m ago)   19m
example-vttablet-zone1-2548885007-46a852d0                    3/3     Running   1 (19m ago)   19m
example-vttablet-zone1-3778123133-6f4ed5fc                    3/3     Running   2 (13m ago)   14m
example-vttablet-zone1-4277914223-0f04a9a6                    3/3     Running   0             76s
example-zone1-vtadmin-c03d7eae-68d845dbfd-wnlk9               2/2     Running   0             19m
example-zone1-vtctld-1d4dcad0-75f6fb7c6b-78rpv                1/1     Running   1 (19m ago)   19m
example-zone1-vtgate-bc6cde92-57fdc84bb6-cdj75                1/1     Running   2 (19m ago)   19m
vitess-operator-7cc877ccc5-vdndl                              1/1     Running   0             20m

Now we can start the Reshard operation. It occurs online, and will not block any read or write operations to your database:

vtctldclient Reshard --target-keyspace customer --workflow cust2cust create --source-shards '-' --target-shards '-80,80-'

After the reshard is complete, we can use VDiff to check data integrity and ensure our source and target shards are consistent:

vtctldclient VDiff --target-keyspace customer --workflow cust2cust create
vtctldclient VDiff --format=json --target-keyspace customer --workflow cust2cust show last

VDiff da8b1af8-eaf0-415b-9b63-4d3606798435 scheduled on target shards, use show to view progress
{
  "Workflow": "cust2cust",
  "Keyspace": "customer",
  "State": "started",
  "UUID": "da8b1af8-eaf0-415b-9b63-4d3606798435",
  "RowsCompared": 4,
  "HasMismatch": false,
  "Shards": "-80,80-",
  "StartedAt": "2025-04-10 06:29:57",
  "Progress": {
    "Percentage": 100,
    "ETA": "2025-04-10 06:29:57"
  }
}

After validating for correctness, the next step is to switch all traffic from the source shards to the target shards:

vtctldclient Reshard --target-keyspace customer --workflow cust2cust SwitchTraffic

We should now be able to see the data that has been copied over to the new shards:

mysql --table < 306_select_customer-80_data.sql
mysql --table < 307_select_customer80-_data.sql

Using customer/-80
Customer
+-------------+--------------------+
| customer_id | email              |
+-------------+--------------------+
|           1 | alice@domain.com   |
|           2 | bob@domain.com     |
|           3 | charlie@domain.com |
|           5 | eve@domain.com     |
+-------------+--------------------+
COrder
+----------+-------------+----------+-------+
| order_id | customer_id | sku      | price |
+----------+-------------+----------+-------+
|        1 |           1 | SKU-1001 |   100 |
|        2 |           2 | SKU-1002 |    30 |
|        3 |           3 | SKU-1002 |    30 |
|        5 |           5 | SKU-1002 |    30 |
+----------+-------------+----------+-------+

Using customer/80-
Customer
+-------------+----------------+
| customer_id | email          |
+-------------+----------------+
|           4 | dan@domain.com |
+-------------+----------------+
COrder
+----------+-------------+----------+-------+
| order_id | customer_id | sku      | price |
+----------+-------------+----------+-------+
|        4 |           4 | SKU-1002 |    30 |
+----------+-------------+----------+-------+

We can now complete the created Reshard workflow and remove the shard that is no longer required:

vtctldclient Reshard --target-keyspace customer --workflow cust2cust complete
kubectl apply --server-side -f 308_down_shard_-.yaml
kubectl delete vitessshards.planetscale.com example-customer-x-x-dc880356

Afterwards the list of running pods should look as follows. As we can see the two tablets for the old shard as well as the vtorc pod were removed.

NAME                                                          READY   STATUS    RESTARTS      AGE
example-commerce-x-x-zone1-vtorc-c13ef6ff-86bd96dfb4-kp8w5    1/1     Running   2 (33m ago)   33m
example-customer-80-x-zone1-vtorc-836adff9-b67657589-ndpxq    1/1     Running   0             15m
example-customer-x-80-zone1-vtorc-2bf8b95e-86b8b56fbc-q69h4   1/1     Running   0             15m
example-etcd-faf13de3-1                                       1/1     Running   0             33m
example-etcd-faf13de3-2                                       1/1     Running   0             33m
example-etcd-faf13de3-3                                       1/1     Running   0             33m
example-vttablet-zone1-0118374573-10d08e80                    3/3     Running   2 (14m ago)   15m
example-vttablet-zone1-0120139806-fed29577                    3/3     Running   0             15m
example-vttablet-zone1-2289928654-7de47379                    3/3     Running   0             15m
example-vttablet-zone1-2469782763-bfadd780                    3/3     Running   2 (33m ago)   33m
example-vttablet-zone1-2548885007-46a852d0                    3/3     Running   1 (33m ago)   33m
example-vttablet-zone1-4277914223-0f04a9a6                    3/3     Running   0             15m
example-zone1-vtadmin-c03d7eae-68d845dbfd-wnlk9               2/2     Running   0             33m
example-zone1-vtctld-1d4dcad0-75f6fb7c6b-78rpv                1/1     Running   1 (33m ago)   33m
example-zone1-vtgate-bc6cde92-57fdc84bb6-cdj75                1/1     Running   2 (33m ago)   33m
vitess-operator-7cc877ccc5-vdndl                              1/1     Running   0             34m

Monitoring

To monitor our Vitess cluster we will use Prometheus and Grafana. We will not go through the setup of Prometheus and Grafana within this post and assume that we already have a running Prometheus and Grafana instance. To monitor our Vitess cluster with Prometheus and Grafana we will create a scrape configuration for Prometheus and import some dashboards² into Grafana.

kubectl apply --server-side -f 401_monitoring.yaml

Once we get some data in the dashboards, we can also generate some load by running the example application. The following command will create customers in our customer table. We can increase the load after some time by restarting the command with the -goroutines flag.

go run . -create-customers
go run . -create-customers -goroutines=20

The following commands will create some orders in our corders table. To create a new order we select a random customer, all products and create a new order for the selected customer and one of the selected products.

go run . -create-orders -goroutines=10
go run . -create-orders -goroutines=100

Now we can also restart some tablets and monitor the behaviour of Vitess via the created dashboards. In teh following we test the following scenarios:

Delete the primary tablet for the commerce keyspace
Delete the replica for shard 80- in the customer keyspace
Delete the primary for shard 80- in the customer keyspace

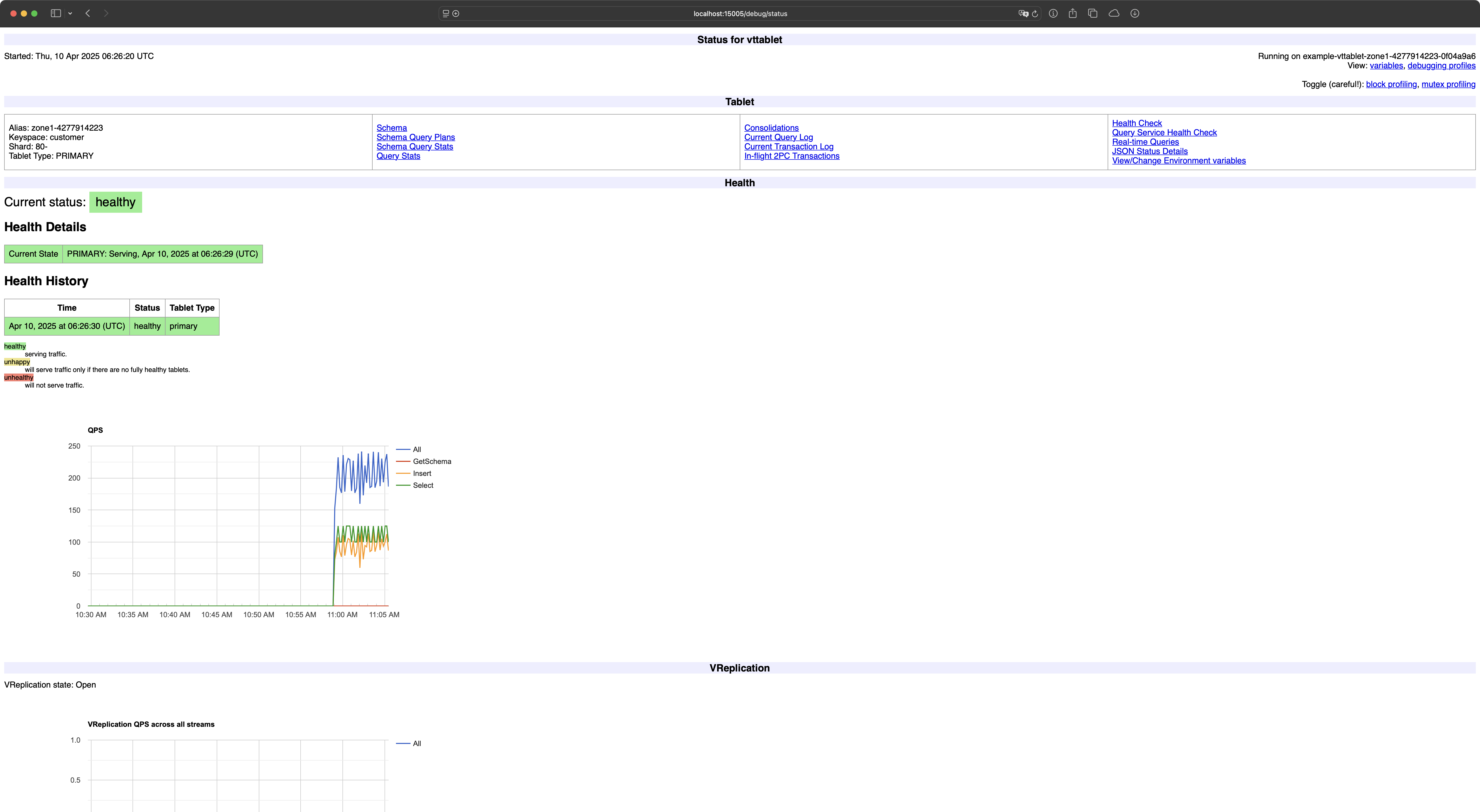

Last but not least, we can monitor a single tablet by creating a port forward and opening http://localhost:15005 in our browser. The dashboard displays the number of queries per second, the current query and transaction log, real-time queries, and much more.

kubectl port-forward example-vttablet-zone1-4277914223-0f04a9a6 15005:15000

That's it for today's post. I had a lot of fun playing around with Vitess and hopefully gained a better understanding of how it works. I hope you also enjoyed the post, and I'll see you next time.

Docuemntation for Sequences and Vindexes ↩︎
We will use the dashboards from the following Gist ↩︎
